ePropulsion Spirit 1.0 Plus Motorenersatzteile (Spare Part)
Hier finden Sie alle Ersatzteile rund um das ePropulsionSpirit 1.0 Plus Bracket. Fragen Sie einfach die Ersatzteile unter [email protected] an teilen Sie uns die Teilenummer beziehungsweise das gewünschte Teil mit.
Wichtig: Bitte in der Mail den Motor angeben und um welches Teil es sich handelt, damit wir die Teilenummer zuordnen können.
Wir machen Ihnen dann schnellstmöglich ein Angebot mit Preis und Lieferzeit.

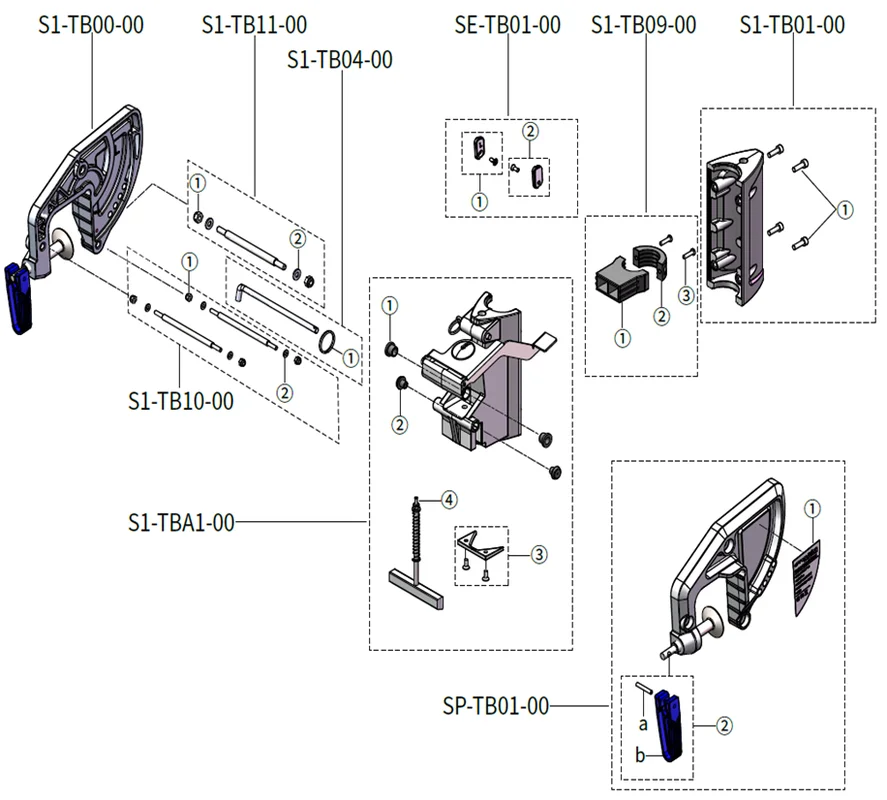

| No. | Part no. | Description | Qty. | |
| S1-TB00-00 | Transom Clamp | 1 Set | ||
| 1 | SP-TB00-00 | Plus Bracket Clamp Left Assy. | 1 Set | |
| 2 | S1-TB11-00 | Bracket Rotational Axis Assy. | 1 Set | |
| ① | 02-0106-00 | Hex Locknut M6 | 2 | |
| ② | 03-0706-00 | Hard Nylon Washer M6 | 2 | |
| 3 | S1-TB04-00 | Trim Pin Pull Ring Assy. | 1 Set | |
| ① | S1-TB04-01 | Pull Ring for Trim Pin Ф25 | 1 | |
| 4 | S1-TB09-00 | Steering Resistance Block Assy. | 1 Set | |
| ① | S1-TB09-01 | Resistance Block Base | 1 | |
| ② | S1-TB09-02 | Resistance Block Cover | 1 | |
| ③ | 01-0304-16 | Phillip Pan Head Tapping Screw M4X16 | 2 | |
| 5 | S1-TB01-00 | Clamp Front Cover Assy. | 1 Set | |
| ① | 01-0105-16 | Hex Socket Round Head Screw M5X16 | 4 | |
| 6 | S1-TBA1-00 | Clamp Main Part Assy. | 1 Set | |
| ① | S1-TB02-01 | Rotational Axis Bushing | 2 | |
| ② | S1-TB02-02 | Rotary Fastener | 2 | |
| ③ | S1-TB02-05 | SPIRIT 1.0 Clamp Base Anode | 1 Set | |
| 01-0504-10 | Phillip Countersunk Head Screw M4X10 | 2 | ||
| S1-TB06-00 | Trim Assy. | 1 Set | ||
| ④ | S1-TB06-A1 | Trim Limiting Stopper Assy. | 1 Set | |
| S1-TB06-01 | Trim Limiting Stopper | 1 | ||
| 05-0205-00 | E-Shaped Circlip Ф5 | 1 | ||
| S1-TB06-02 | Trim Stopper Slide Shaft | 1 | ||
| S1-TB06-03 | Pressure Spring for Trim Limiting Stopper | 1 | ||
| S1-TB06-04 | Anti-Vibration Pressure Spring | 1 | ||
| 03-0104-08 | Nylon Washer M4X8X1 | 2 | ||
| 02-0104-00 | Hex Locknut M4 | 1 | ||
| 7 | SP-TB01-00 | Plus Bracket Clamp Right Assy. | 1 Set | |
| ① | S1-TB03-02 | Product Label | 1 | |
| ② | S1-TB03-A1 | Clamp Tightening Handle Assy. | 1 Set | |
| a | S1-TB03-05 | Clamp Tightening Handle | 1 | |
| b | 04-0204-25 | Rolled Spring Pin Ф4X25 | 1 | |
| 8 | S1-TB10-00 | Bracket Fixing Axis Assy. | 1 Set | |
| ① | 02-0104-00 | Hex Locknut M4 | 4 | |
| ② | 03-0704-00 | Hard Nylon Washer M4 | 4 | |
| 9 | SE-TB01-00 | SPIRIT 1.0 Evo Clamp Anode Evo | 1 Set | |
| ① | SE-TB02-00 | SPIRIT 1.0 Evo Clamp Left Anode Assy. | 1 | |
| ② | SE-TB03-00 | SPIRIT 1.0 Evo Clamp Right Anode Assy. | 1 |
